A quiet PC build is a sickness, and I mean that in the nicest way possible. It's 11 PM on a Tuesday. Jen's asleep. Cody's been down since 8. The garage smells like coffee from the pot I made at 9, and I'm staring at a fan curve in MSI Afterburner thinking "one more adjustment and I'll have it." I've been saying that for two hours. This post is about why I can't stop tweaking — and a beginner-friendly undervolting guide so you can do the same thing without spending three years learning it the hard way.
Why I Can't Stop Tweaking
The obsession started with a single number. I had a client's RTX 4070 on the test bench, and at stock settings it was hitting 74°C with fans at 2,400 RPM. I could hear it through the garage wall. I dropped the voltage curve, retested, and got 70°C at 2,000 RPM. Four degrees. 400 RPM. That was it — I was hooked.
The Satisfaction of Five Degrees
There's something deeply satisfying about taking a card that runs at 74°C and making it run at 69°C with no performance loss. It feels like you've gotten away with something. The GPU is doing the same work, pushing the same frames, but it's quieter and cooler because you found a better path through the voltage/frequency curve.
Every adjustment teaches you something. Drop 10mV, test stability. If it holds, drop another 10mV. When it crashes, you've found the floor. Back off 20mV and you've got your daily setting. The process is methodical — route, test, adjust, repeat. It's the same discipline as cable management or PSU diagnosis, just applied to voltage curves instead of zip ties.
A quiet PC build isn't built in one session. It's built across a dozen late nights, each one shaving a degree or two off the load temp, each one dropping the fan curve by 100 RPM. The compounding effect is real. Start at 74°C and 2,400 RPM, end at 68°C and 1,750 RPM across a week of tweaking. That's the difference between a PC you hear and a PC you forget is on.
A Beginner's Undervolting Guide
Undervolting is the process of running your GPU or CPU at a lower voltage than the factory setting while maintaining the same clock speed. Less voltage means less heat. Less heat means slower fans. Slower fans mean a quieter PC. It's the single most effective tweak for a quiet PC build, and most people never do it because it sounds complicated. It's not.
What Undervolting Actually Does
Your GPU ships with a voltage/frequency curve set by the manufacturer. That curve is conservative — it provides more voltage than necessary at most frequencies to ensure stability across every chip that comes off the production line. Every GPU silicon is slightly different. Some need more voltage, some need less. The manufacturer sets the curve for the worst-case chip.
Undervolting finds the voltage your specific chip actually needs. If your GPU runs stable at 900mV at 1900MHz but the factory curve sets 1050mV for that same frequency, you're wasting 150mV as heat. Dropping that voltage reduces power draw, reduces heat output, and allows the fans to spin slower.
Basic Steps for GPU Undervolting
Here's the process I use. It works for Nvidia cards using MSI Afterburner. AMD cards use a similar process in WattMan.
Download and install MSI Afterburner and Unigine Superposition (free stress test)
Run Superposition at 1080p Extreme for 10 minutes to establish baseline temps and clock speeds
Note your GPU's average clock speed and temperature under load
Open MSI Afterburner, press Ctrl+F to open the voltage/frequency curve editor
Find your average clock speed on the Y-axis — say 1900MHz
Drag the point on the curve at that frequency down to 900mV on the X-axis
Flatten the curve to the right of that point so the GPU won't boost higher
Click Apply — the curve should show a flat line at your chosen voltage
Run Superposition again for 10 minutes — if it crashes, increase voltage by 10mV and retry
If stable, drop another 10mV and test again — repeat until unstable, then back off 20mV
Save the profile in Afterburner and set it to apply on startup
Setting | Stock | Undervolted | Change |
|---|---|---|---|
Voltage at 1900MHz | 1050mV | 900mV | -150mV |
GPU temp (gaming load) | 74°C | 68°C | -6°C |
Fan speed | 2,400 RPM | 1,750 RPM | -650 RPM |
Average FPS | 142 | 140 | -2 FPS |
Power draw | 220W | 185W | -35W |
That's a 6°C temperature drop and a 27% reduction in fan speed for a 1.4% performance loss. In a quiet room, the difference is night and day. The GPU goes from audible to nearly silent.
CPU Undervolting Basics
GPU undervolting gets the attention, but CPU undervolting matters too — especially for a quiet PC build where the CPU fan is the other noise source. For Intel CPUs, use the offset voltage feature in your BIOS. A -0.05V offset is a safe starting point. Test with Cinebench R23 for stability. For AMD CPUs, Curve Optimizer in the BIOS lets you set a negative offset — start at -10 and work down.
The process is the same as GPU undervolting: find the lowest stable voltage, back off a step for safety, and run with it. The undervolting guide for beginners is the same whether you're tuning a GPU or a CPU — small steps, test each one, keep notes.
The Quiet PC Build Philosophy

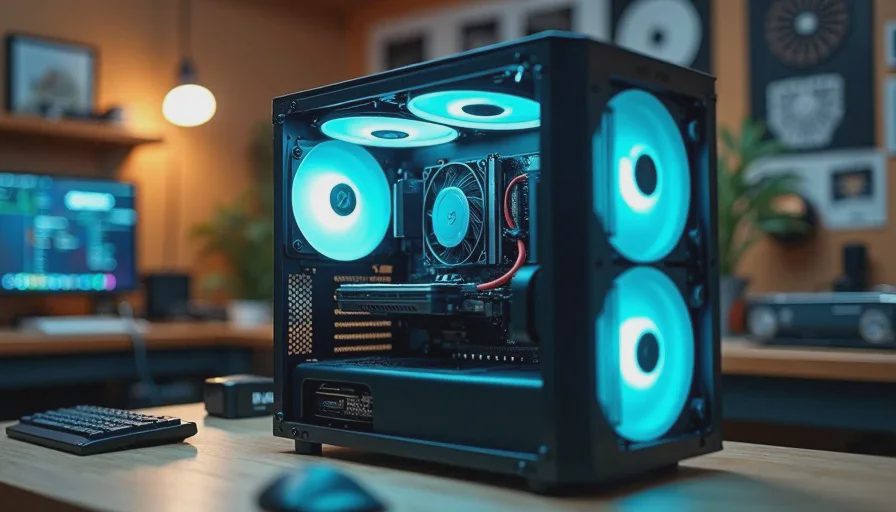

A quiet PC build is the sum of a hundred small decisions. The case you choose — one with sound-dampening foam or a mesh front for airflow. The fans you install — Noctua, be quiet!, or Arctic P12s running at low RPM. The fan curve you tune — flat and low until 60°C, then a gentle ramp. The PSU you pick — a fanless unit or one with a zero-RPM mode under 40% load. And the undervolt you apply to both GPU and CPU.
Each decision drops the noise floor by a decibel or two. Stack enough of them and your PC becomes inaudible from three feet away. That's the goal. Not silence — inaudibility. A PC you can game on at midnight without waking anyone in the next room.
The Fan Curve I Keep Coming Back To
After three years of tweaking, here's the GPU fan curve I've settled on for most builds. It's not aggressive, it's not silent — it's the compromise that keeps temps reasonable while staying quiet.
GPU Temp | Fan Speed | What You Hear |
|---|---|---|
0-50°C | 0% (fan stop) | Nothing |
50-60°C | 30% (~900 RPM) | Barely audible |
60-70°C | 45% (~1,300 RPM) | Quiet hum |
70-75°C | 60% (~1,700 RPM) | Noticeable but not loud |
75-80°C | 80% (~2,200 RPM) | Clearly audible |
80°C+ | 100% | Loud — something's wrong |
The Garage at Midnight
It's past midnight now. The coffee's cold. The Astros game on the garage TV ended an hour ago, and I'm still here because I found a -15mV step that held through a 20-minute Superposition run. The GPU is at 67°C. The fans are at 1,650 RPM. I can hear the crickets outside through the garage door crack.
This is what a quiet PC build does to you. You start with a goal — "make it quieter" — and you end up chasing a number. The number is never low enough. There's always another 5mV to try, another curve point to adjust, another fan RPM to shave off. The garage is quiet. The PC is quieter. That's enough for tonight.
I turn it on so you don't have to.
